GSM 2G/3G datalogger with solar panel EP2010
Featured Features:
- Monitoring and transmission of alarm to cellulare.
- Acquirer with integrated solar panel.
- Easy installation.
- 2G / 3G GSM transmission.
- Local storage.
- Access to data via the Internet.
- Includes atmospheric pressure sensor.
The Tecmes Model EP2010 Remote Acquisitor is a device for the measurement, storage and transmission of data from industrial sensors such as hydrometeorological via GSM 2G / 3G Cellular telephony.
The unit that is supplied fully integrated in a cabinet built in acetal resin with its battery power supply and solar panel, allows to quickly and easily integrate any remote monitoring and measurement system.
Its simple assembly on a 45 mm tube and its connection through RJ9 connectors make them especially suitable for monitoring variables eciently and economically.
Access to the measured data is done through your USB port, or remotely on an external server through a TECMES web page by means of a password (GSM 2G / 3G Option).
Another possibility is to do it through the user’s website, using the data collection and storage program optionally provided by TECMES.
The equipment is supplied with the conguration software, data download and sensor scaling in engineering units
| Number of analog channels: | 9 |
| Digital pulse input: | 2 (1 to 300 Hz) |
| Digital analog converter: | 12 bits |
| Resolution: | 1 in 4096 |
| Accuracy: | +/- 0,02% |
| Analog Input Levels: | 0-3, 3 V or 4-20 mA |
| Measuring periods: | 1, 5, 10, 12, 15, 20, 30 y 60 minutes |
| Measurement: | Last minute average |
| Atmospheric pressure sensor: | 600 to 1100 hp |
| Data storage capacity: | 14.000 data per channel |
| Dataports: | USB, RS232 or RS485. Protocol Modbus |
| Power Supply: | 8 – 16 Vcc |
| Setting: | By PC |
| Transmission: | GSM 2G/ 3G |
| Enclosure: | Integrated with buyer, battery and solar panel |
| Dimensions: | L 354 x W 215 x H 154 mm |
Optionals:
- EP0010 mounting tripod.
- 2G / 3G GSM transmitter.
- Website Program.
- Pegasus Mobile APP
Datalogger TS2631
Featured Features:
- Non-volatile memory.
- Modular and compact.
- configuration and programming update of the firmware by USB port.
- Transmission via cell phone / radio / satellite.
- Large coverage.
- Protected inputs / outputs.
The dataloggers of Line 2631 are measurement and data acquisition systems for industrial, meteorological or environmental sensors.
Its transmission through a cell phone equipment, by radio or satellite, makes it very versatile and applicable to remote telemetric stations.
Through a P.C. Acquired data is accessed easily and reliably.
It has standardized analog and digital inputs, which allows direct connection of sensors, both industrial and meteorological and environmental.
Its 12 V power supply and low consumption make it suitable for autonomous operation with batteries and solar panels.
COMUNICATIONS
The Acquisition Unit has multiple communication doors: RS232, USB, RS485, SDI12, (RS422 Optional).
These communication doors allow the equipment to easily communicate with Laptops, Satellite communication modems, cell phone, Radio modems etc.
OPERATIONAL PROGRAMS
The unit has statistical calculation programs on the input variables, such as maximums, minimums and averages.
As for the data, these are validated and processed with High and Low thresholds and Ascending and Descending slopes.
The standard modes of operation are:
- Autonomous
- Periodic
- By interrogation
- For events
Optionally, operation program appropriate to each speci!c need, requested by the user, can be provided.
| CPU: | Low power processor, 32-bit CMOS technology. |
| Data storage memory: | 16 MB FLASH, not volatile |
| Data register: | FIFO, 30.000 data per channel |
| Real time clock: | Accuracy ±1min / month; synchronizable |
| Communication Ports: | USB, RS232, RS485, SDI12, Ethernet, (RS422 Optional) |
| Analog inputs: | 16 common mode / 8 di!erentials + 1 for battery voltage measurement |
| Converter AD: | 16 bit resolution |
| Input levels: | 0 – 4 V or 4 – 20 mA |
| Accurancy: | ±0,04% de Fs (0 – 40ºC) |
| Protections: | In all – in out, by gaseous protectors, inductor and semiconductor |
| Digital inputs / outputs: | 1 port RS 232; RS 485; USB 8/ 16 digital contact inputs 1 Rain Gauge input, with debounce and fault detection. 1 SDI12 Port capable of directional up to 15 sensors |
| Outputs: | 2 for sensor supply 12Vcc- 100mA |
| Power Supply: | 9-16 Vcc |
| Range of operation: | -40ºC to +60ºC – Standard (In environments without condensation) |
| Enclosure: | Metallic with treatment 233 x 186 x 80 mm. |
Datalogger 2G / 3G TS2040
Featured Features:
- Acquirer and Autonomous Registrar.
- Very low consumption Great autonomy.
- Reduced Dimensions.
- Easy installation.
- Transmission via 2G / 3G.
- USB communication port.
The TECMES Model TS2040 Datalogger is a device for the measurement and storage of data from hydrological and industrial sensors.
Its implementation optimizes energy use, operating in low consumption modes, turning on peripherals, sensor and communication systems on demand. This allows you to operate with 4 alkaline batteries D achieving autonomies of up to 12 months (according to the dened measurement and recording times).
The unit is supplied fully integrated in a suitable outdoor enclosure, with IP65 degree of protection, small dimensions and very easy installation.
Optionally it can be provided with 2G / 3G transmission.
Software is provided that runs in Windows environment for local operation and is available as an option of a software capable of receiving the data sent by 2G / 3G, managing it in a Database and making it public through a Web Application which is accessed from any Internet browser accessing with username and password.
| Input channels: | 3 Analogue 1 Frequency |
| Input Range: | 0 – 3.3 Vcc / 4 – 20 mA |
| Accuracy: | +/- 0,04% |
| Registration Period: | 1, 10, 15, 20, 60, 120, 360, 720 minutes |
| Registered Data: | Average during measurement time |
| Measurement Time: | 15, 30, 60, 120, 300 seg |
| Data memory: | 30.000 records |
| Local connection: | Port USB |
| Wireless connection: | 2G / 3G |
| power Supply: | 4 Alkaline Batteries D |
| Enclosure: | IP65 – suitable outdoors |
| Dimensions: | 150 mm x 200 mm x 110 mm |
Optionals:
SAT2-M: Server and Web Application
AUTONOMOUS EQUIPMENT
To measure water speed

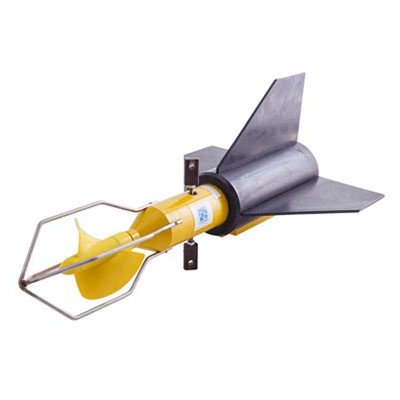

Current and Direction Recorder TS 1020
Featured Features:
• Acquirer and Autonomous Registrar.
• Measures Direction and Speed of the current.
• Very low consumption. Great autonomy.
• Operation via RF link.
• Minimum maintenance.
The TECMES Model TS 1020 Directional Comeograph is a device for rneasuring and recording speed and direction of currents in rivers, estuaries, etc.
Autonomous operation, allows operation submerged for long periods with minimal maintenance.
Made of non-oxidizable metals, it has a mechanism of great robustness and durability.
Your electronics records the speed of the current and direction using an electronic compass for very long periods of time without replacing your batteries.
With very few moving parts, only the propeller with its magnets inserted, rnake this equipment a very, reliable instrument.
| Range: | Speed: 0,05 a 8 m/sec |
| Address: | 0 a 360 ° |
| Precision: | Speed: 1,5% ,for reading by above 0,15 m/sec. Address: +/- 5 ° |
| Propeller: | Styrene 125 mm in diameter |
| Subjection: | To operate suspended from a cable. |
| Data register: | Configurable in 1, 10, 15, 20, 60, 120, 360 and 720 minutes |
| Measurement time: | Configurable in 1, 15, 30, 60 y 120 seconds |
| Conñguration and Data download: | Via USBport or via RF by air 100m reach, via AS1020 interface to PC |
| Registration Capacity: | 30.000 data |
| Power Supply: | 4 AA alkaline batteries, up to 12 nonths of autonomy (measuring every 15 minutes) |
| Dimensions: | Length 72 cm, fin width 14 cm and height 27 cm. |
| Weight: | 12 Kg |
It Includes:
- PC communication interface Model AS 1020
- Replacement Propeller Shaft
- Carrying case
- User manual in Spanish and Engllsh

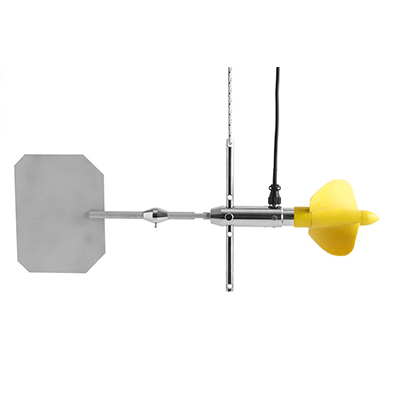

Hydrometric Current Meter TS 1001
Featured Features:
- Wide measurement scale.
- Simple and low maintenance project.
- Simple operation.
The TECMES Model TS 1001 Digital Hydrographic Windmill or Wind Turbine is a device suitable for the measurement of river flow velocities, as well as in industrial eftluents.
It allows subrnerged operation for long periods of time with minimal rnaintenance.
Built in alurninum and bronze, it has a system of rotation detection by switch network of great robustness and durability.
An electronic counter with liquid crystal display shows the rotation speed after 10, 30, 60, 120, 180, 240 seconds and inñnity (permanent count).
With very few rnoving parts. only the propeller with its rnagnets inserted, rnake this equipment a ver), relíable instrument.
| Range: | 0,05 a 5 m/sec |
| Precision: | 1,5% for reading above 0,15 m/sec |
| Propeller:: | High-impact styrene 125 mm in diameter |
| Subjection: | Capacity Bar 3 x 0.5m in length and Bar 0.25m perforated stand for use with Pendan; suspended from a cable. |
| Display: | Electronic with 4 dígits and auditory signal for every turn of the propeller. |
| Indication: | in m/s y pulses |
It Includes:
- Directional flap with clamping bar.
- Replacement Propeller Shaft.
- Suspensionbar.
- Carrying case 54x26x36cm (weight with al! accessories, 6kg).
- User manual in Spanish and English.
Flow Meter TS 1360
Featured Features:
- Transmission via 2G / 3G.
- Doppler effect speed sensor.
- Acquirer and Autonomous Registrar.
- Very low consumption Great autonomy.
- Battery operation.
- Easy installation.
- USB communication port.
The TECMES Model TS1360 Flowmeter is a device for measuring, storing and transmitting data on the flow and level of channels, or water lines with clean bottoms.
It consists of a transducer that acts by Doppler effect measuring the speed of the fluid and a TECMES TS2040 datalogger.
Its implementation optimizes energy use, operating with 4 alkaline batteries D achieving autonomies of up to 12 months (according to defined measurement and recording times).
The speed measurement is performed by a Doppler effect sensor that installed at the bottom of the channel, measures the average speed that together with the level measurement allows the flow value to be obtained.
Data transmission is done by 2G / 3G cell phone to a server with access by username and password.
In this way, data is accessed online from any site with an Internet browser simply through a username and password.
In this site you can access the latest data received, it is possible to download historical data, plot it between dates, view them on a map etc.
| Speed Range: | 0 to 10 m/s |
| Level range: | 0 to 10m |
| Registration Period: | 1, 10, 15, 20, 60, 120, 360, 720 minutes |
| Registered Data: | Average during measurement time |
| Measurement Time: | 15, 30, 60, 120, 300 sec. |
| Data memory: | 30.000 records |
| Local connection: | port USB |
| Wireless connection: | 2G / 3G |
| Power Supply: | 4 Alkaline Batteries D |
| Autonomy: | up to 12 months |
| Enclosure: | IP64 – suitable outdoors |
To measure water level
GSM 2G / 3G Level Recorder whit solar panel EP1350
Featured Features:
- Acquirer with integrated solar panel.
- Easy installation.
- 2G / 3G GSM transmission.
- Local storage.
- Access to data via the Internet.
- With pressure or float level sensors.
- USB communication port.
The TECMES Model EP 1350 Limnígrafo is a device for the measurement, storage and transmission via GSM 2G / 3G cellular telephone of level data.
The unit that is supplied fully integrated in a cabinet built in acetal resin with its battery power supply and solar panel, allows to quickly and easily integrate level sensors by pressure or float.
Its simple assembly on a 45 mm tube and its connection through RJ9 connectors make them especially suitable for measuring levels eciently and economically.
Access to the measured data is done through your USB port, or remotely on an external server through the TECMES website through a password.
Another possibility is to provide the web application for the user to install on their own server.
The equipment is supplied with conguration software, data download and sensor scaling in engineering units.
| Digital analog converter: : | 12 bits |
| Accuracy: | +/- 0,04% |
| Measurement periods: | 5, 10, 12, 15, 20, 30 y 60 minutes |
| Measurement: | last minute average |
| Data memory: | 14.000 data per channel |
| Entry doors exit: | USB |
| Power Supply: | 8 – 16 Vcc |
| Setting: | by PC |
| Transmission: | GSM 2G/ 3G Quadband |
| Enclosure: | integrated with buyer, battery and solar panel |
| Dimensions: | L 354 x W 215 x H 154 mm |
| Models: | TS1350 TRX: Recorder with level sensor and 2G / 3G communication. X=P: Pressure level sensor. X=F: Float level sensor. Level sensor TS312P by pressure, ranges: 0-1; 10; 20 m. TS310F by float,ranges: 0-1; 6; 10m. |
Optional:
- SAT2-P web application software
- EP0010 mounting tripod.
2G / 3G Level Recorder TS 1340
Featured Features:
- Acquirer and Autonomous Registrar.
- Very low consumption Great autonomy.
- Reduced Dimensions.
- Easy installation.
- Transmission via 2G / 3G.
- Remote data download by RF.
- Pressure level sensor or Float.
- USB communication port.
The TECMES Model TS1340 Limnigraph is a device for measuring, storing level data from pressure or float type sensors.
Its implementation optimizes energy use, operating in low consumption modes which allows it to operate with 4 alkaline batteries D achieving autonomies of up to 24 months (according to the defined measurement and recording times).
The equipment is composed of a Model TS2040 data logger and a level sensor that can be by pressure such as the TS312P or float model TS310F.
The unit is supplied fully integrated in a cabinet suitable outdoors, with degree of protection IP65, of dimensions reduced and very easy installation resulting highly recommended to install in places with public access, being able to hide easily to avoid acts of vandalism, for example: under a bridge, which is possible since its operation does not depend on solar energy.
The standard version includes a 2G / 3G cell phone communication MODEM transmitting to our website with access by username and password or through a radio link that allows data downloading close to the installation site being necessary in this case to use the AS1020 Interface to PC.
A software is provided next to the device to configure and download the data that you run in a Windows environment.
| Input Range: | 0 – 3.3 Vcc |
| Accuracy: | +/- 0,04% |
| Registration Period: | 10, 15, 20, 60, 120, 360, 720 minutes |
| Registered Data: | Average during measurement time |
| Measurement Time: | 15, 30, 60, 120, 300 sec |
| Data memory: | 30.000 records |
| Local connection: | port USB |
| Wireless connection: | RF o 2G / 3G |
| Power Supply: | 4 Alkaline Batteries D |
| Autonomy: | up to 12 months |
| Enclosure: | IP65 – suitable outdoors |
| Dimensions: | D: 210 x 160 x 110 mm |
| Models: | TS1340 X Recorder with Level Sensor X = P: Pressure Level: 0-1, 0-10, 0-20 mts. |
Optionals:
AT2-M: Server and Web Application.
To measure precipitation
GSM 2G / 3G Rain Recorder with solar panel EP 1222
Featured Features:
- High reliability.
- GSM 2G/3G.
- High accuracy and autonomy.
- Calibrated pickup ring.
- Solid state memory.
- Easy installation.
- USB communication port.
- EP0010 mounting tripod.
The TECMES Pluviograph, Model EP 1222 is a device designed to record in a solid state memory, the precipitation detected by means of a tilting bucket.
The rain, collected by a catchment mouth of calibrated diameter, is conducted by means of a single-piece funnel to the internal receiver that discharges on a tilting bucket.
When you dump it, a magnetic contact (reed switch) without mechanicallinkage with the bucket emits a digital signal.
This digital signal is sent to the solid-state recorder that is located under the platform that supports the precipitation sensor.
The equipment is supplied with the very easy-to-operate Model TP 02 software, which by means of an oriented menu allows the configuration of the pluviograph and the downloading of memory data.
It is also possible through this soft check the operation of the bucket or inspect the data already stored in the memory of recorded rainfall.
Its construction is robust and easyto install, requiring only a 45mm tube for assembly.
The power is through a battery that is charged by a solar panel integrated into the equipment.
Optionally, a 2G / 3G G5M transmission can be provided to a server for accessfrom anywhere with the Internet.
| Sensor: | Tipping bucket |
| Sensivity: : | 0.25 mm |
| Operation range: | 0 – 300 mm/h |
| Orifice Diameter: | 200mm pickup ring |
| Accuracy: | 4 % at 50 mm/h |
| Operating Temperature: | -20 to + 60°C |
| Insect protection: | Metal mesh in the funnel and in a water discharge |
| Detector:: | Reedswitch activated by a magnet |
| Recorder: | In nonvolatile memory |
| Autonomy: | 14.000 precipitation data |
| Autonomy of Alimentation: | Unlimited |
| Leveling: | Perlevel bubble |
| Building: | In stainless materials |
Optional:
- T5 1222 Recorder with 2G / 3G communication.
- 5AT2-P Web application software.
Rain Recorder 2G / 3G TS1240
The TECMES Model TS 1240 Pluviograph is a device for the measurement, storage and transrnission of precipltatlon data by means of a tilting bucket.
lhe rain, collected by a catchment mouth of calibrated díameter, is conducted by means of a síngle-píece funnel to the internal receíver that discharges on a tilting bucket.
When you dump it, a magnetic contact (reed switch); wíthout mechanical linkage with the bucket emits a digital signal.
Thís digital signal is sent to the TS 2040 datalogger.
Its implementation optímizes energy use, operating with 4 alkaline batteries D achíeving autonomies of up to 12 months (according to defined rneasurernent and recording times).
Data transrnission is done by 2G / 3G cell phone to a server with access by usernarne and password.
In this way, data is accessed online frorn any site with an Internet browser sirnply through a username and password.
In this site you can access the latest data received, it is possible to download historical data, plot it between dates, view them on a rnap, etc.
SPECIFICATIONS OF THE PLUVIOMETER
| Sensor: | Tipping bucket |
| Sensitivity: | 0.25 mm |
| Operation range: | 0 – 300 mm/h |
| Orifice Diameter: | 200mm pickup ring |
| Accuracy: | +/-1 % to 50 mm/h |
| Operating Temperature: | -20 to + 60°C |
| Insect Protection: | Metal mesh in the funnel and in a water discharge |
| Detector: | Reedswitch activated by a magnet |
DATALOGGER SPEClFICATIONS
| Registration Period: | 10, 15, 20, 60, 120, 360, 720 minutes |
| Registered Data: | Averageduring measurement time |
| Data memory: | 30.000 reords |
| Local connection: | Port USB |
| Wireless connection: | RF o 2G / 3G |
| Power Supply:: | 4 Alkaline Batteries D |
| Autonomy: | up te 12 months |
| Enclosure:: | IP65 – suitable outdoors |
| Dimensions: | D: 210 x 160 x 110mm |
Satellite Rain Recorder TS 1221
he TECMES Model TS1221 Pluviograph is a device for the measurement, storage and transmission of precipitation data by means of a tilting bucket.
The rain, collected by a catchment mouth of calibrated diameter, is conducted by means of a single-piece funnel to the internal receiver that discharges on a tilting bucket.
When you dump it, a magnetic contact (reed switch) without mechanical linkage with the bucket emits a digital signal.
This digital signal is sent to the TS 3040 Equipment, which is composed of a TS 2631 datalogger and an Orbcomm AS 3013 satellite transmission modem.
This equipment operates with a 12V battery which is charged by solar energy, through a photovoltaic panel.
The modem sends a message with the compressed data to an email box preset in AS 3013.
This e-mail is received and processed by a Central Station (EC) software service, which decompresses the data and incorporates it into the Database. This action generates a warning, notifying the arrival of new data.
The Orbcomm system maintains almost real-time connectivity, which basically depends on satellite coverage at the installation site of the equipment. The satellite link is made between AS 3013 and an Orbcomm earth station. From this earth station internet is used to reach the user with the nal information through the use of emails.
SPECIFICATIONS OF THE PLUVIOMETER
| Sensor: | Tipping bucket |
| Sensitivity: | 0.25 mm |
| Operation range: | 0 – 300 mm/h |
| Ori!ce Diameter: | 200mm pickup ring |
| Accuracy: | +/-1 % at 50 mm/h |
| Operating Temperature: | -20 to + 60°C |
| Insect protection: | Metal mesh in the funnel and in the water discharge |
| Detector: | Reed switch activated by a magnet |
MODEM SPECIFICATIONS
| Power Supply: | 9 to 14 Vcc (typical 12 Vcc) |
| Antenna: | |
| Impedance: | 50 ohm |
| Operating Frequency: | Rx 137,00 – 138,00 MHz. Tx 148,00- 150,00 MHz.0 – 300 mm/h |
| Tx power: | 5W |
| RS-232 Serial Port: | |
| Signals: | RXD: pin 2 / TXD: pin 3 / 0V: pin 5 |
| Configuration Mode against PC: | 8-N-1 data format. No flow control Configurable speed |
| Autonomous Mode: | 8-N-1 data format. No flow control. Configurable speed between 1200 bps and 115 Kbps |
| Operating Temperature: | -20 ºC to +60ºC |
Solicitá un Presupuesto
- (+54) 11 5272 - 5104
- tecmes@tecmes.com
- Av. Belgrano 1380, CABA
- Lun. a Vie. 9 a 17 hs.
